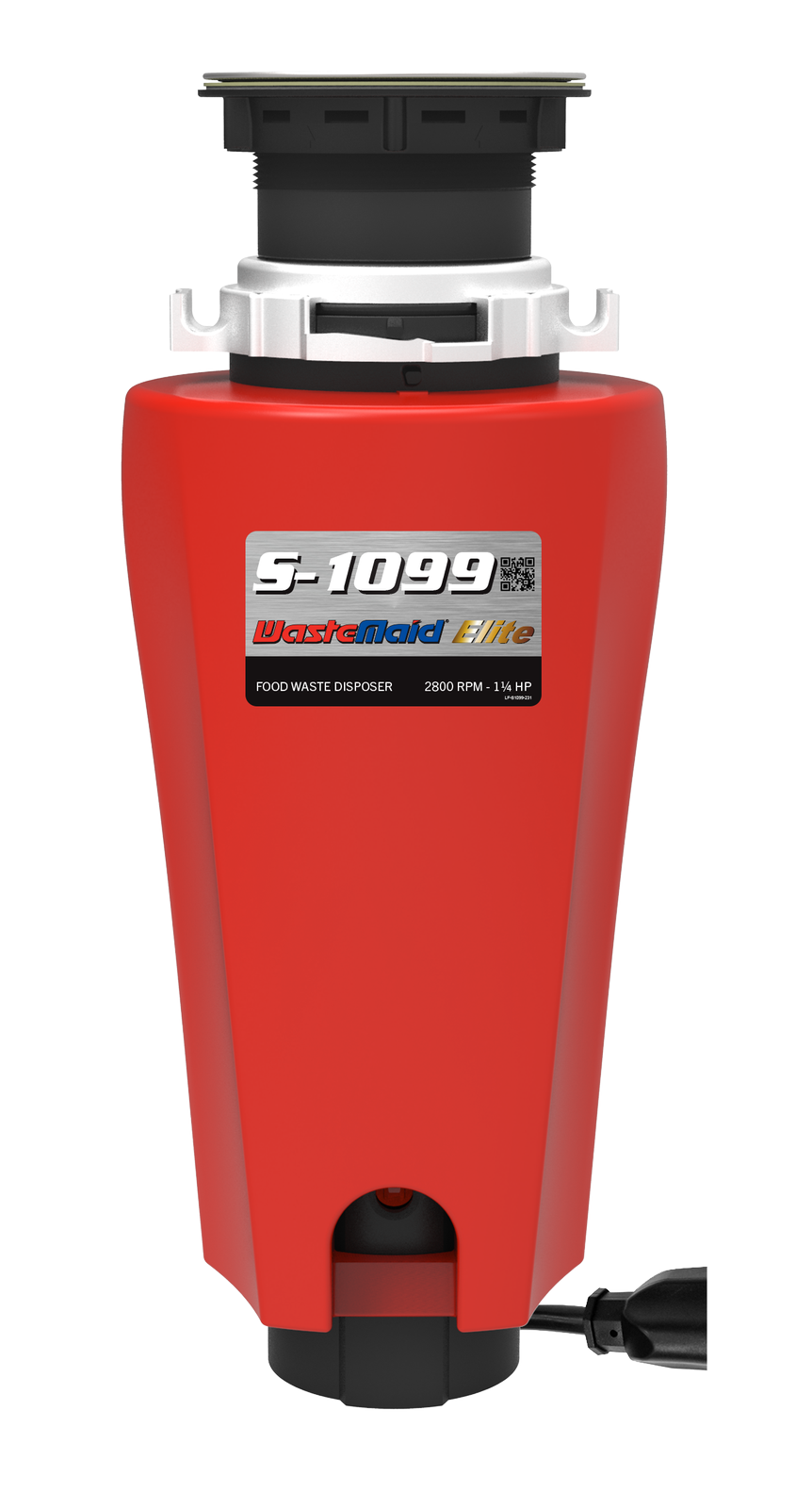

WasteMaid Elite 'S-Series S-1099AS' Premium Waste Disposer

Waste Maid 'Elite S-Series' S-1099AS Waste Disposal Unit

New 'Elite S-SERIES' - Continuous Feed with Improved Motor

with Built-in Push Button Air Switch

Summary

* Continuous Feed Model - Food can continually be added during the grinding process.
* Built-in Push Button Air Switch
* Fits all sinks with a standard 90mm waste hole
* Easy & Fast to Install - features 'Speed Master Mounting'
* 1.25 HP, 490 watts
* Corrosion Proof - carries 'lifetime' warranty against failure due to corrosion
* Compact & Lightweight - design allows for installation where undercounter space is limited
* Removable Splash Guard - ideal for easy cleaning & replacement
* Permanent Magnet Motors - motors offer maximum torque instantly with jam cutting power
* Bio Shield - for Odour Protection
* Torque Master Ultimate' - Advanced Grinding System
* Full Hush-Shield Shell sound reducing technology.
* Stainless Steel Grinding Components
* Attached Power cord (80cm length) with UK 3-Pin Plug (13amp)
* Includes: 'Sink Flange Assembly Kit'
* Includes: 'WasteMaid Plug / Stopper (Black)'
* Includes: 'WasteMaid Rubber Splashguard'

  3-Year UK Warranty (Domestic Use)

Product Description

The WasteMaid 'Elite' S-1099AS is the Deluxe Model - A 1.25 HP Motor is included along with Cast Stainless Steel Impellors and a one-piece grind ring to produce the absolute finest grind. Full sound insulation for a much quieter operation.

It is supplied with a 3 Years UK Warranty and as with all WasteMaid models has a lifetime guarantee against failure due to corrosion.

Includes a Built-in Push Button Air Switch

Technical Details

HORSEPOWER - 1.25HP
MOTOR SPEED - 2700RPM
VOLTAGE - 220-240V
WATTAGE - 900
AMPS - 4.00
CYCLES - 50/60
MOTOR TYPE - Permanent Magnet
BEARINGS - Permanently Lubricated sleeve Type
SPLASH GUARD - Removable with Bio-Shield Protection
GRINDING SYSTEM - Torque Master Ultimate
GRIND RING - Stainless Steel
SWIVEL IMPELLERS - Stamped Stainless Steel
BALANCED TURNTABLE - Stainless Steel
BALANCED ARMATURE SHAFT - Yes
HOPPER - Corrosion Proof
DRAIN HOUSING - Corrosion Proof
APPLIANCE PROTECTOR - Manual Reset
SINK FLANGE - Stainless Steel
MOUNTING ASSEMBLY - Speed Master (Threaded)
SOUND SHELL - Full Hush - Sound Shield Shell
POWER CABLE LENGTH - 80cm
DISHWASHER CONNECTION - Yes
UNIT WEIGHT - 5.7kg
LIFETIME CORROSION WARRANTY - Yes
WARRANTY - 3-Year replacement

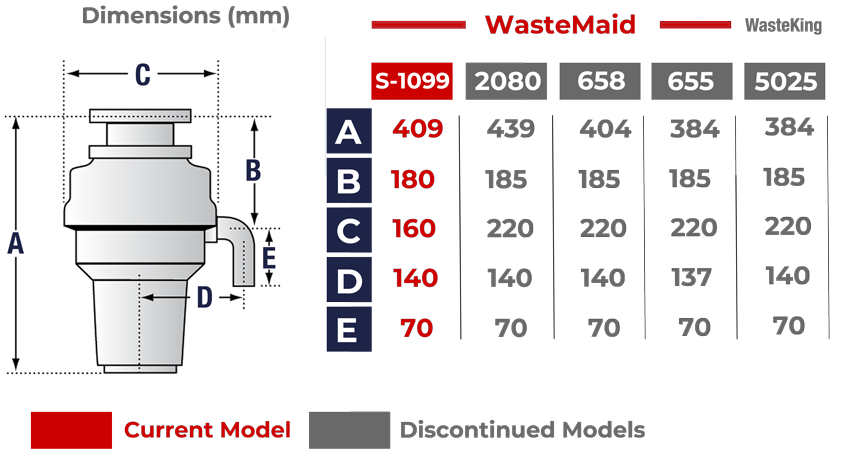

Dimensions of WasteMaid Elite S-1099AS

Replacing an Existing WasteMaid Model

The Elite S-1099AS is the replacement for the discontinued WasteMaid - 655, 658, 2080, 2080-AS

(See 'Replacing a WasteMaid' tab above)

Installation

A detailed installation guide is included in the box.

This is also available to download from the 'Manual / Instructions' tab above.

 CERAMIC SINKS  - If fitting to a ceramic sink - you may require an additional 'Extended Flange' to replace the 'Standard Flange' that is supplied with the disposer - more details here

  Replacing a WasteMaid disposer?

Compare the current WasteMaid S-1099AS model with the equivalent discontinued models.

Measurement 'C' is often an important factor in choosing a model, and depends upon how much cupboard space there is underneath your sink.

 Download the 'WasteMaid User Manual' (Installation Instructions)

Please Note: WasteMaid warranties apply to normal private household use only and do not cover commercial usage.
